Electric Feeder Pick And Place Equipment For 0201 10mm Tape Reel Package IC Tray Feeder

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

Electric Feeder Pick And Place Equipment For 0201 10mm Tape Reel Package IC Tray Feeder

Brand Name : ETON

Model Number : YT202

Certification : CCC,SIRA,CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, T/T

Supply Ability : 50pcs/month

Delivery Time : 5-8days

Packaging Details : We use vacuum wooden box packaging

Length : 2317mm

Width : 1376mm

Height : 1762mm

Total weight : 1700kg

Max size : 500mm*450mm(single PCB);500mm*300mm(double PCB)

Min size : 50mm*50mm

Mounting speed : 90000CPH

Components range : Min 0201-10mm packages and IC etc

Contact Now

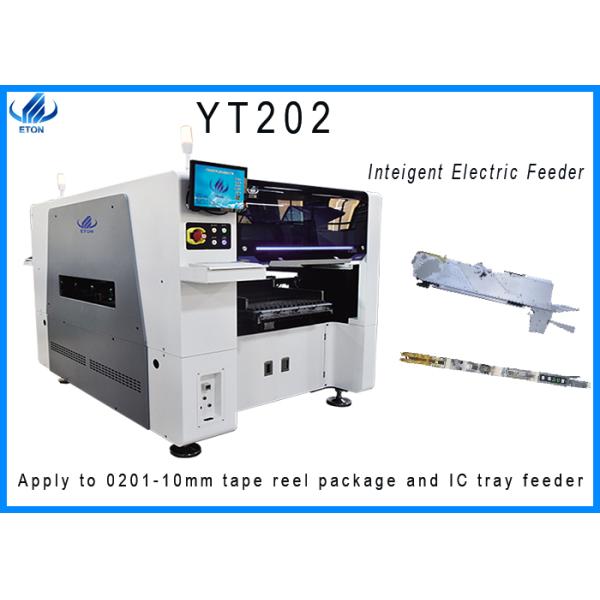

PICK AND PLACE MACHINE 0201-10mm tape reel package and IC tray feeder

YT202:20: it means that there are 20 suction heads in the dual-mode group and 10 suction heads in the single-mode group. A single row of matrix 10 heads is used to form a module with 10 suction heads, and there are 20 suction heads in the dual-mode group.

2: Represents double mode group and double orbit.

Product features

Repetition accuracy: +-0.02mm

Number of feeders: 64 kinds of materials can be loaded

Range of mounting components: 0201-10mm packaging materials and IC materials

Mounting capacity: 90000cph (under the best conditions of the company)

PCB size: single board maximum (450*500mm); Double plate maximum (300*500mm)

Minimum (50*50mm)

YT202:

1. Two sets of x-axis and one set of Y-Axis, using high-end Magnetic Levitation Motor;

2. 20 sets of servo motors for Z-Axis independently control the picking and mounting;

3. Four sets of four degree motors for R-Axis independently control 0-360 degree angle; It is realized by 1 control 5;

4. The three-stage track is divided into plate feeding track, mounting track and publishing track, and the motor is realized by 12 sets of integrated motors;

Electric Feeder Pick And Place Equipment For 0201 10mm Tape Reel Package IC Tray Feeder

Our products

We not only provide mounter, but also SMT peripheral equipment, such as: loading machine, Stencil printer machine, Conveyor, Reflow Oven, Translational machine, Cutting machine, Dividing machine, Dispensing machine, Unloading machine, etc

Electric Feeder Pick And Place Equipment For 0201 10mm Tape Reel Package IC Tray Feeder

ETON quality advantages

ETON focuses on R & D and is supported by a strong technical team. ETON's machines are very famous in the market. In order to ensure product quality, we have adopted strict processes in material procurement and product production. In 2020, ETON Jiangxi Industrial Park "ETON Intelligent Park" was successfully completed, equipped with advanced processing and manufacturing centers to check the quality of parts from the source, and further standardize and process the production process.

FAQ

Q: How is the training?

A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.

Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
