PCB Pick And Place Machine high efficiency good stable with PCB Assembly Line
Advantages of RT series design
♕Suitable for mounting high components. Because during the high-component mounting process, if the PCB is moving, the mounted components are prone to displacement
♕Products suitable for mounting small boards, because the PCB board is fixed after entering the board, if it is clamped again, it will vibrate other mounted components.
Machine information
- The machine is single module linear motor multifunctional pick and place machine,total 10 head.
- Its high precision,apply to LED chip,resistor,capacitor,IC,shaped components etc.
- The mounting speed of RT-1 is 30000 CPH.
Main parameter
| Technical parameter |
| Dimension | 1200*1930*1500mm |
| PCB size | MAX:400*350MM MIN:50*50MM |
| PCB clamping | Electric clamping |
| Mounting precision | ±0.04mm |
| Mounting element height | ≤22mm |
| Mounting speed | 30000-35000CPH |
| Feeding way | Electric feeder with double motor |
| No.of feeders station | 32 PCS |
| No.of nozzles | 10 PCS |
Exclusive patented technology
- Electronic feeder feeding system
- Vision alignment flight identification,Mark correction
- Auto-optimization after coordinates generated,etc.
Mounting mode
▲The mounting mode of RT-1 is group picking and separate placing,separate picking and separate placing.
▲Multi-function machines are mainly used in a variety of products, such as bulbs,flexible light strips, lamp tubes, panel lights, display screens, etc.

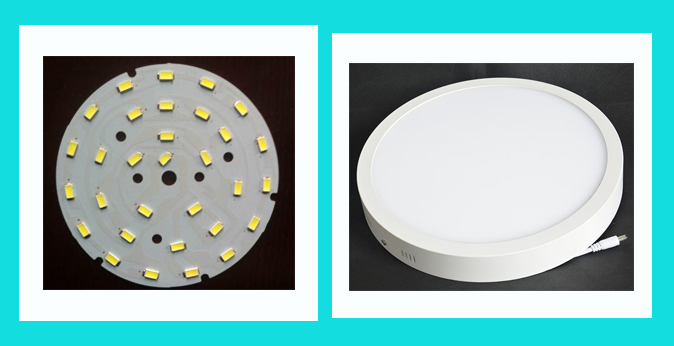

▲As shown in the figure below, the bulbs and the panel lamp beads are generally arranged in a ring, with various angles. The multifunctional machine has the function of group picking and splitting. Each placement head is relatively independent, and multiple lamp beads can be mounted back and forth.
Product application examples
RT-1 can mount products such as bulbs, drivers, downlights, street lights, circuit boards, DOB.
Company Profile
Shenzhen ETON Automation Equipment Co.,LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.And we have our own industrial park, which can further standardize and streamline the production process.
Actual capacity
- The optimal capacity of RT-1 is 30000-35000 CPH.
- Factors that affect the actual production capacity: the time of entering and exiting the board, the size of the board, the number of heads used, the type of components, the number of components, etc.
Operate system
The systems used by our machines are all independently developed,and easy to operate,usually 3 to 5 days training of operating is enough.
| System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard,Mouse |
After-sales service&payment.
FAQ:
Q:what is your time of delivery?
A:Within 30 days after receiving the deposit
Q:What is your shipping package?
A:We use vacuum packaging and wooden box packaging
Q:What after-sale service do you have?
A:1. The warranty period is one year
2. Free installation and training
3.24 hours after-sales service
Q:What are your payment methods and shipping methods?
A:Payment method:T/T. Shipping method:We support sea, land and air transportation
If you are interested in our products or want to enter the LED business, Please feel free to contact me.
